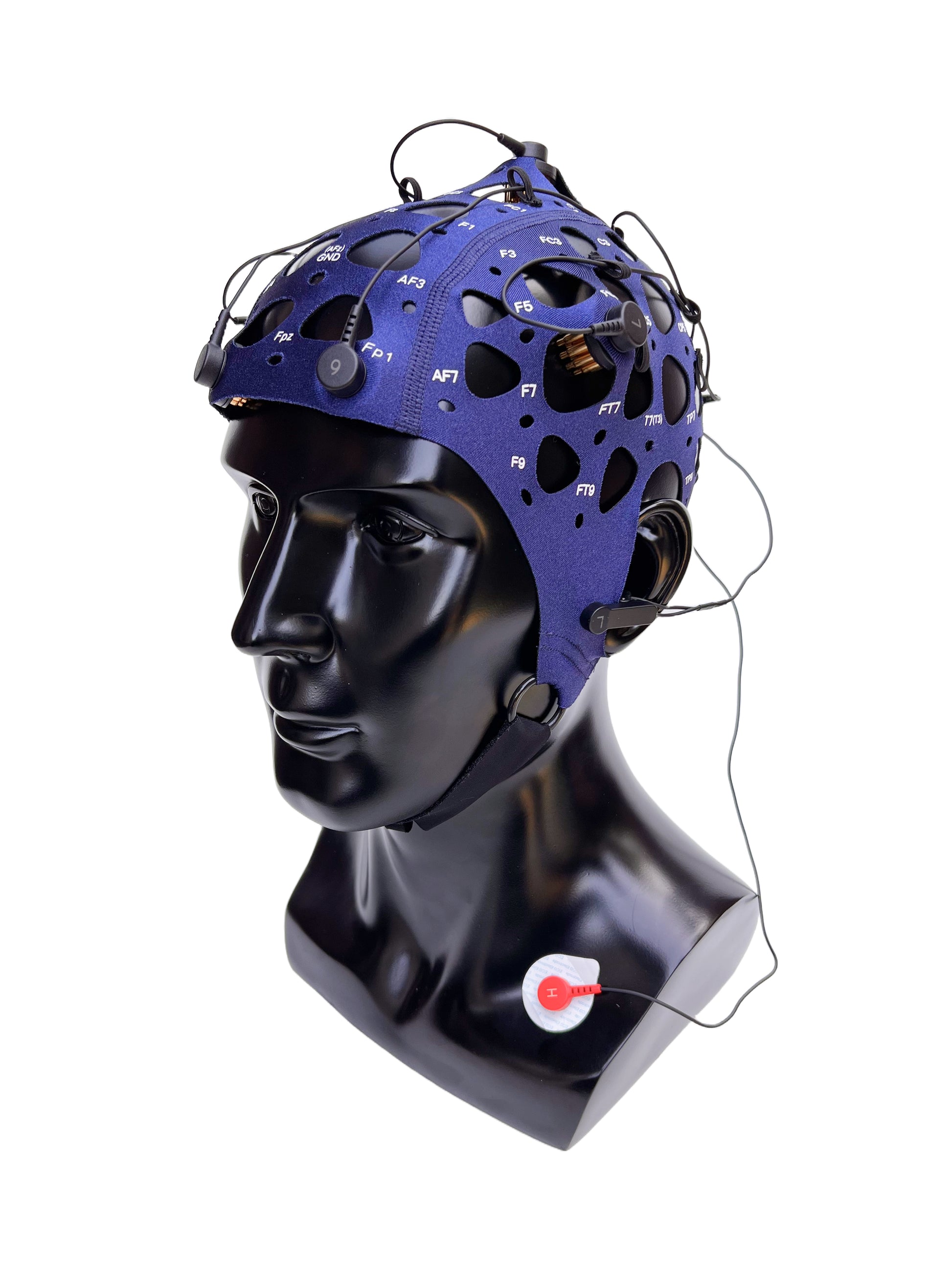

• Synchroni Octo on a mannequin: blue 10-10 cap with dry electrodes and an ECG electrode on the chest

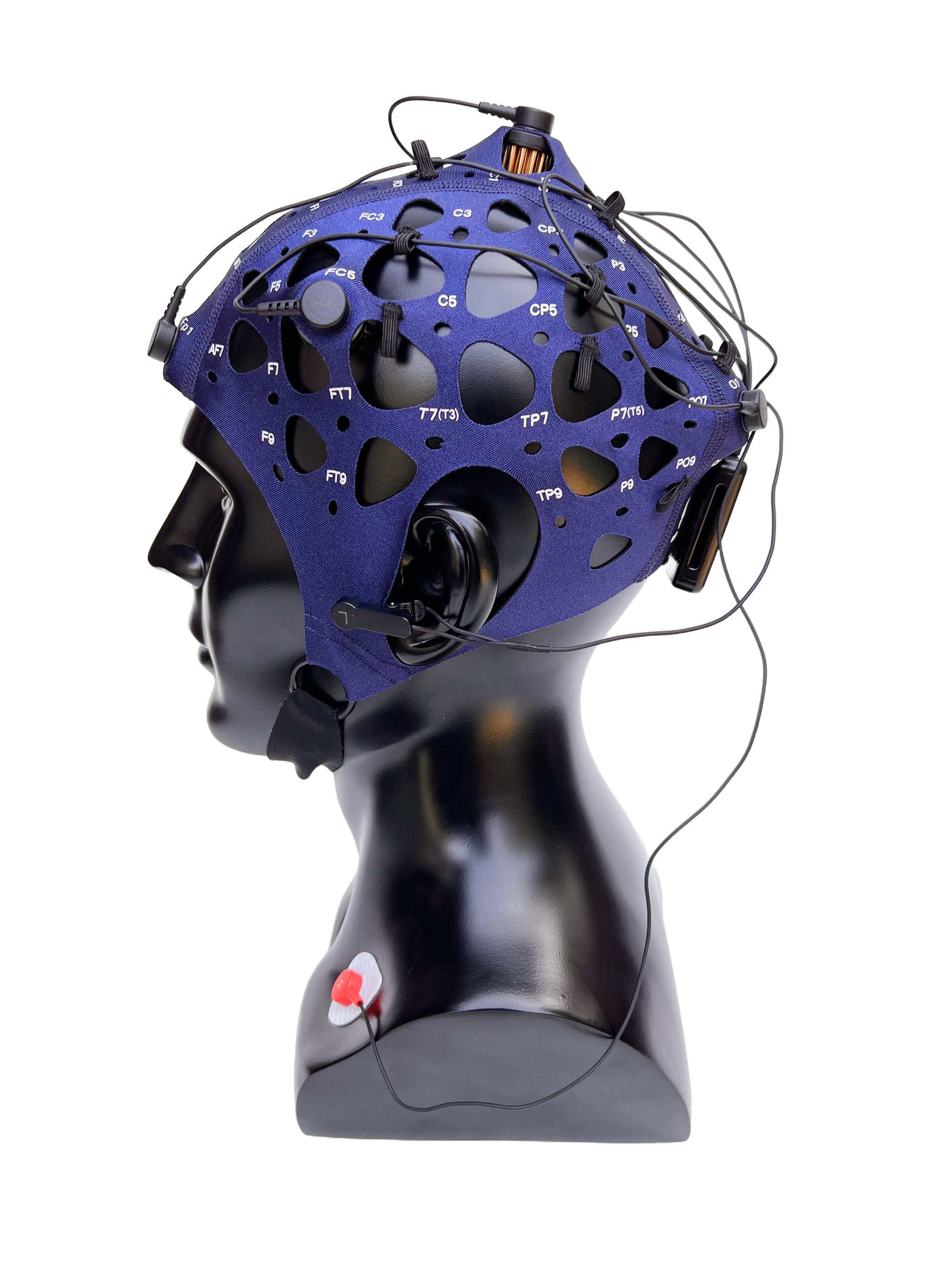

  • Synchroni Octo, side view of the 10-10 cap, electrodes and cables

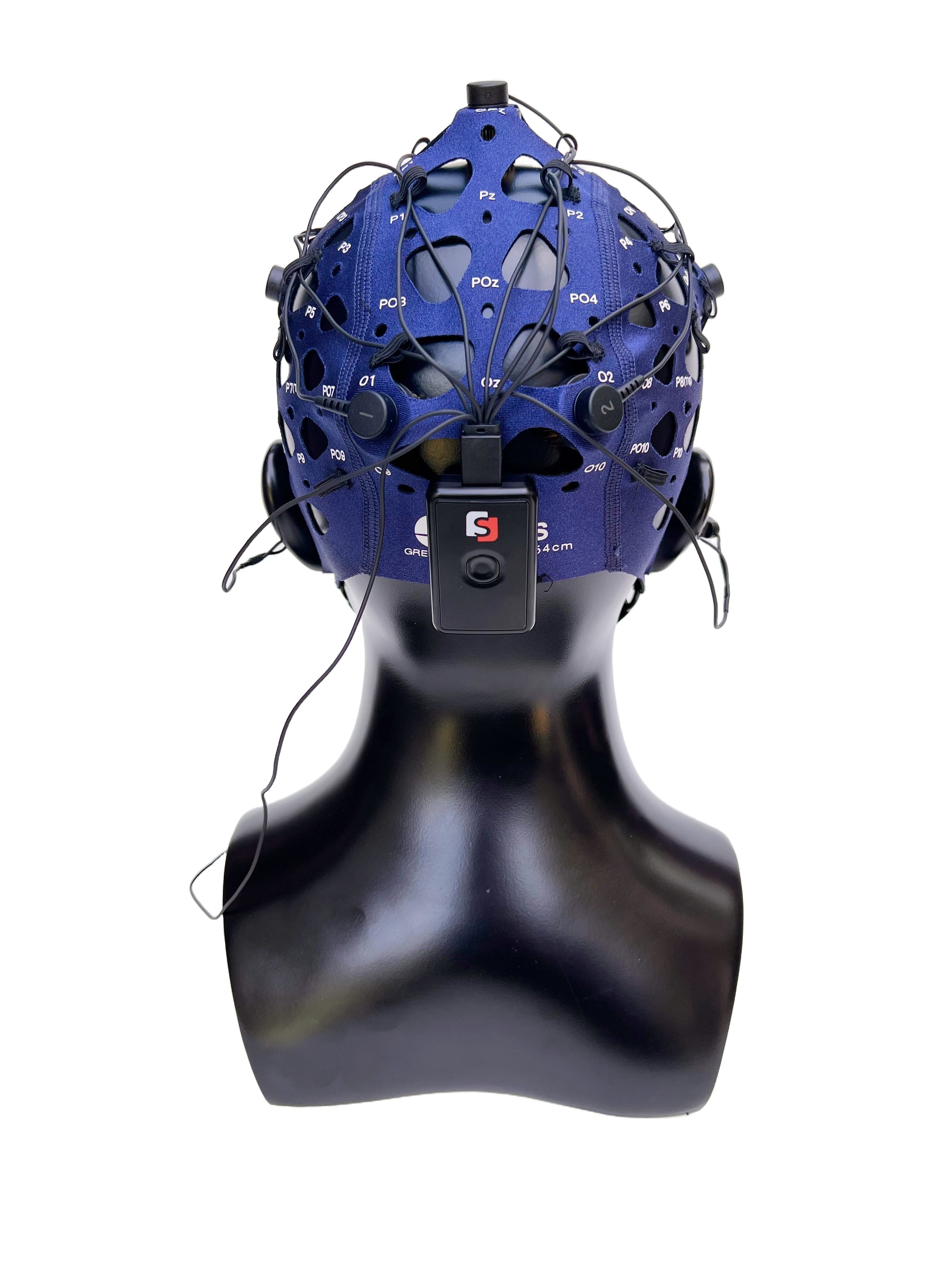

  • Synchroni Octo, back view: the amplifier mounted on the 10-10 cap

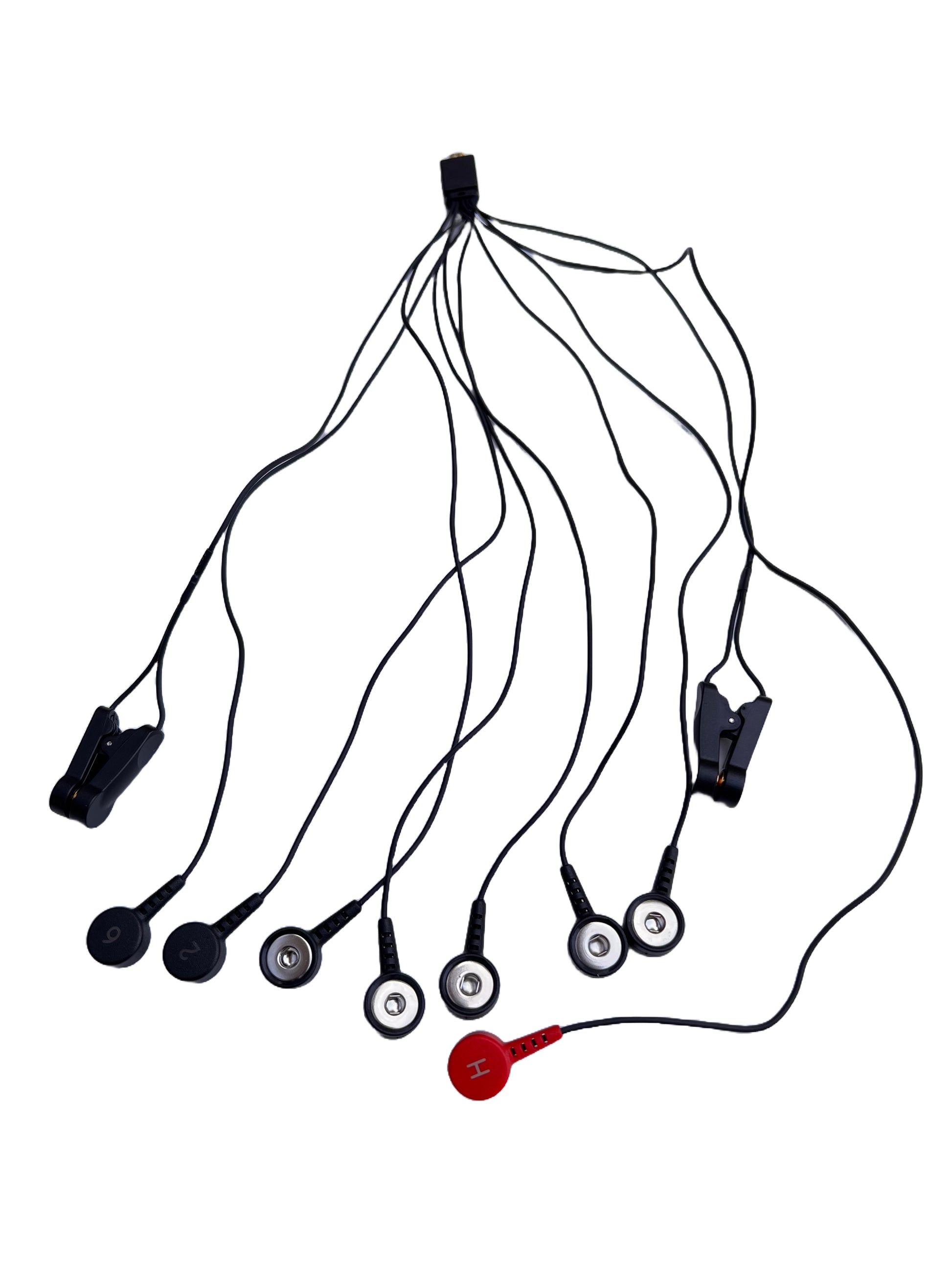

  • Synchroni Octo EEG cables: seven EEG leads, a red ECG lead and two ear clips

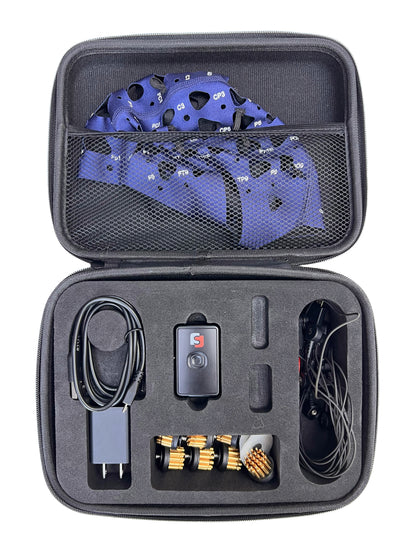

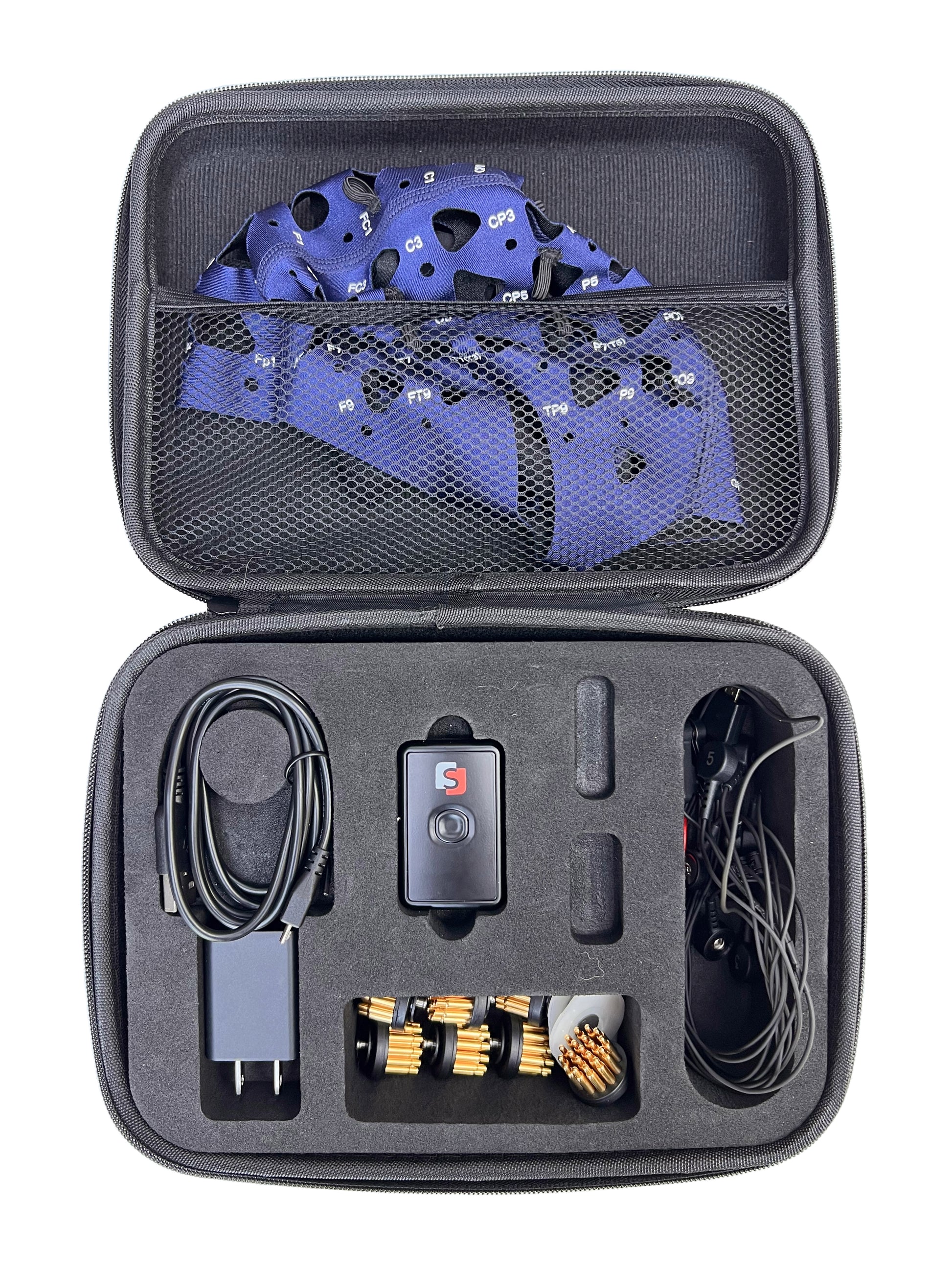

  • Synchroni Octo kit in its carrying case: 10-10 cap, amplifier, dry electrodes, cables, charging cable and plug
1 5

Synchroni

Synchroni Octo, 7-Channel EEG + ECG

Synchroni Octo, 7-Channel EEG + ECG

$1,349.00 USD
$1,349.00 USD
Sale Sold out
EEG Cap Size

Octo records 7 EEG channels and 1 ECG channel.

In the box: Octo amplifier, 7 dry 19-pin electrodes (long), Octo EEG cables, 10-10 EEG cap (S, M or L), 5 ECG electrodes, carrying case, charging cable and plug.

Specs

  • Amplifier: 25 g, wireless over Bluetooth Low Energy 4.2
  • Resolution: 24-bit, DC coupled
  • Sampling: 250 Hz streamed (2000 Hz internal)
  • Input range ±333 mV, input impedance >250 MΩ, noise floor ±3 µV peak to peak
  • Impedance check: real time
  • Motion: accelerometer (±8 g) and gyroscope (±2000 dps) at 50 Hz
  • Battery: up to 12 hours (500 mAh Li-ion)
  • Reference and bias: ear clip electrode
  • Records into NeuralScale Recorder, free to record
